Unboxing and Setting Up Your Trueview 3MP 4G Bullet CCTV Camera: A Complete Guide

The Trueview 3MP 1296p HD All Time Color 4G SIM-Based Bullet CCTV Security Camera is a versatile surveillance solution perfect for homes, shops, offices, farms, or construction sites. With an IP66 waterproof rating, it withstands harsh weather, ensuring reliable performance year-round. This blog post walks you through unboxing, installing the memory and SIM cards, and configuring the mobile app for seamless monitoring.

Unboxing Your Trueview CCTV Camera

Your Trueview camera package includes:

• 4G SIM-enabled bullet weatherproof camera
• Mounting screws
• User manual
• DC power adapter

Buy Trueview 4G Bullet Online

These components are designed for a hassle-free setup, making it accessible for both beginners and seasoned users. The camera boasts advanced features like All Time Color Vision for vivid visuals in low light, 3MP resolution for precise detail capture, and expandable storage up to 256GB via microSD card. Additional perks include Full Duplex Audio Intercom for two-way communication, intelligent detection alerts, and adjustable night vision modes, ensuring comprehensive 24/7 surveillance.

Step-by-Step: Inserting Memory and SIM Cards

Properly installing the SIM and memory cards is critical for your camera’s functionality. Follow these steps carefully:

1. Power Off the Camera: Always turn off the camera before inserting cards to avoid damage.
2. Locate the Card Slots: At the bottom of the camera, lift the protective cap to reveal the SIM and microSD card slots.
3. Insert the SIM Card: Use a 3G or 4G SIM card with an active data plan. Insert it into the top slot, ensuring proper alignment. A click confirms it’s secure. To remove, press gently to release.
4. Insert the MicroSD Card: Insert a microSD card (up to 256GB) into the bottom slot, aligning it as indicated by nearby icons. This supports 7–10 days of footage, depending on settings like video quality and recording mode (continuous or motion-triggered).
5. Verify Installation: Double-check that both cards are securely seated to prevent data loss or recording issues.

With the cards installed, your camera is ready to deliver reliable surveillance.

Configuring the Truecloud Mobile App

The Truecloud app, developed by Warner India, is the hub for managing your Trueview camera. Here’s how to set it up:

1. Download and Install the App

• Open the Play Store on your smartphone or tablet.
• Search for “Truecloud” and select the app by Warner India.
• Tap “Install,” accept permissions, and wait for the download to complete.
• Launch the app by tapping “Open” or finding the icon on your home screen.

2. Log In or Register

• Existing Users: Enter your phone number or email and password on the login screen, then tap “Login.”
• New Users:
  • Tap the register option and choose email or mobile number registration.
  • For mobile registration, select your country code and enter your number.
  • Complete the safety certification by dragging the tennis ball to the racket on-screen.
  • Enter the verification code sent to your phone and create a password.
  • Optionally, link an email for easier logins.

3. Power Up the Camera

• Plug in the camera using the provided DC power adapter.
• Wait for the voice prompt confirming “Network connection is succeeded” and “4G Connected,” indicating a successful 4G network connection.

4. Add the Camera to the App

• In the Truecloud app, tap “Add Device” or the “+” symbol and select “Scan QR Code.”
• Grant camera access permissions when prompted.

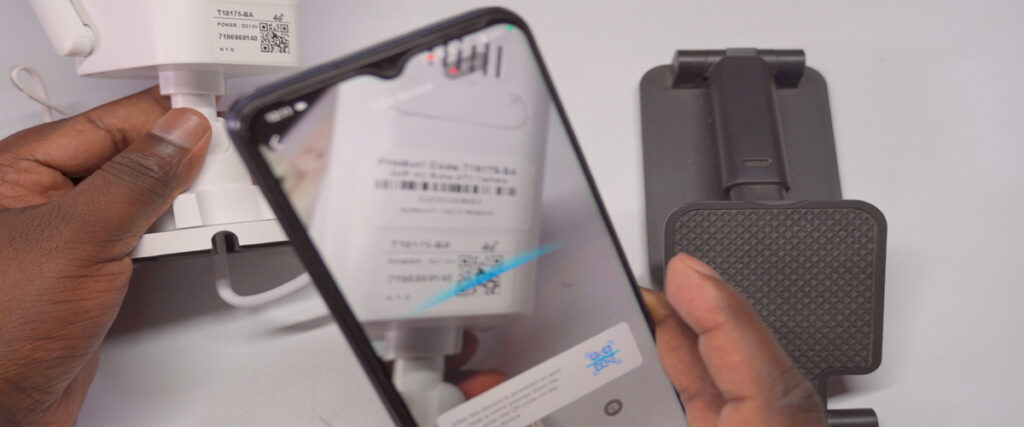

• Locate the QR code on the camera’s body (usually on a sticker) and scan it with your phone. The app will recognize the code and guide you through the remaining setup steps.

If the camera doesn’t connect, press the reset button for 5 seconds until you hear a notification, then retry.

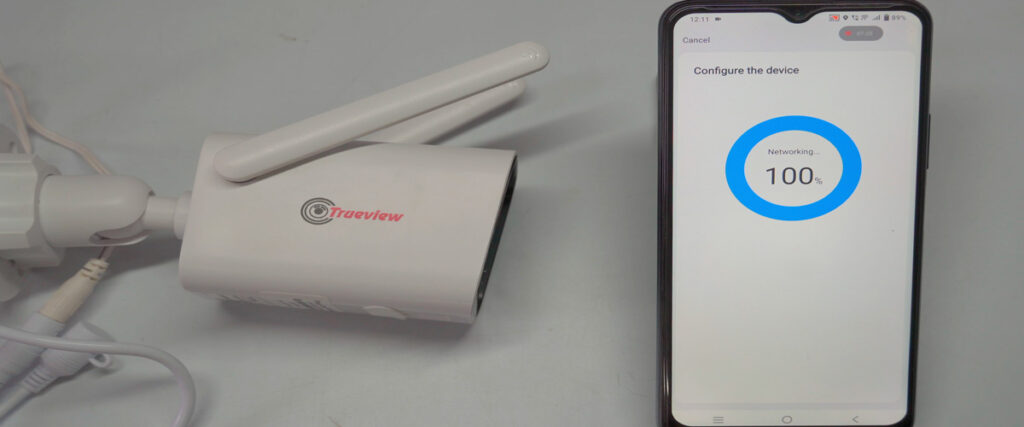

5. Finalize Setup

• Once added, a voice prompt or notification confirms the camera is ready.
• Customize settings like date, time, and camera name, and set its location for easy management.
• Save the QR code in the app for future reference in case the physical sticker is damaged.
• Initialize the memory card by following the app’s prompts to format it for recording.

Managing Storage and Footage

To check your memory card’s status:

• Open the Truecloud app, go to camera settings, and select “Storage Settings” under the record list.
• If the card shows as “Uninitialized,” tap “Storage Medium” and select “Initialize” to format it.
• Once initialized, the status changes to “In Use,” and the available storage capacity is displayed.

To review footage:

• Click the “Playback” button and select “SD” as the storage option.
• Browse motion-triggered or event-based recordings (default mode) or adjust settings for continuous recording.

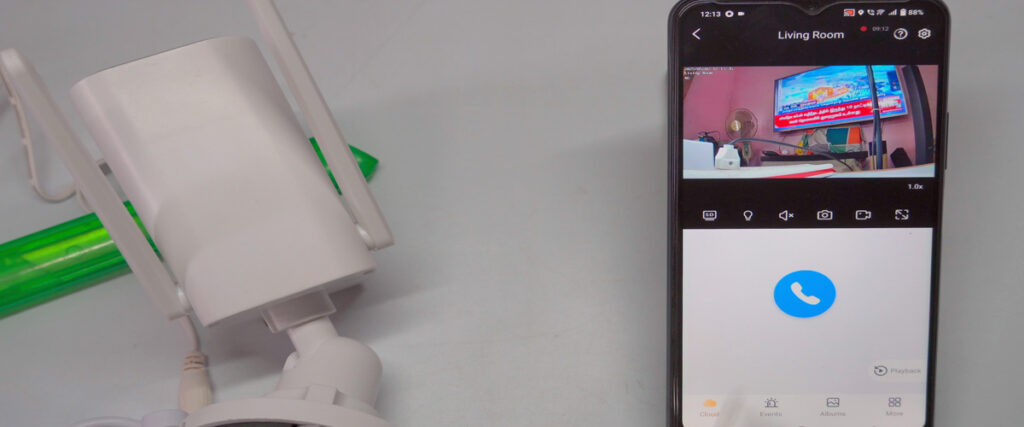

The Truecloud app supports live streaming and playback over mobile data or Wi-Fi, enabling real-time monitoring from anywhere.

Installing the Camera

After setup, mount the camera in a strategic location for optimal coverage. Ensure it’s positioned to monitor the intended area effectively. With live streaming, playback, and customizable settings, your Trueview camera is now fully operational, keeping your property secure.

Why Choose Trueview?

The Trueview 3MP 4G CCTV Camera combines cutting-edge technology with user-friendly features:

• Vivid 3MP visuals with All Time Color Vision
• Robust IP66 waterproof design
• Expandable 256GB storage
• Two-way audio and intelligent alerts
• Seamless app integration for remote monitoring

Whether you’re safeguarding your home or business, this camera delivers reliable, high-quality surveillance.

Get the Most Out of Your Camera

Explore the Truecloud app’s settings to tailor the camera to your needs, from adjusting recording modes to enabling audio. For more tips and tutorials, check out our video series for in-depth guidance.
