Step-by-Step Guide: Connecting an IP Camera to a CCTV Recorder, PC, or Standalone Setup

,

This detailed guide explains how to connect an IP camera to a CCTV recorder, PC, or use it standalone. We use a Hikvision IP camera as an example, but these steps are applicable to most IP cameras. This guide covers two methods for powering and streaming the camera via your LAN network: using a Passive POE Injector Splitter Kit and a POE Switch.

Method 1: Using a Passive POE Injector Splitter Kit

This method is ideal when you’re setting up one or two cameras within a 30-meter range. It simplifies the installation process by providing both power and data through a single Ethernet cable.

Step 1: Understand the Components

    • POE Splitter Package Includes:
      • 1 POE Injector Cable
      • 1 POE Splitter Cable
    • The splitter combines power and data in one Ethernet cable, making it efficient for short-range setups.

    Buy Online : PoE Injector Splitter Kit

    Step 2: Connection Setup

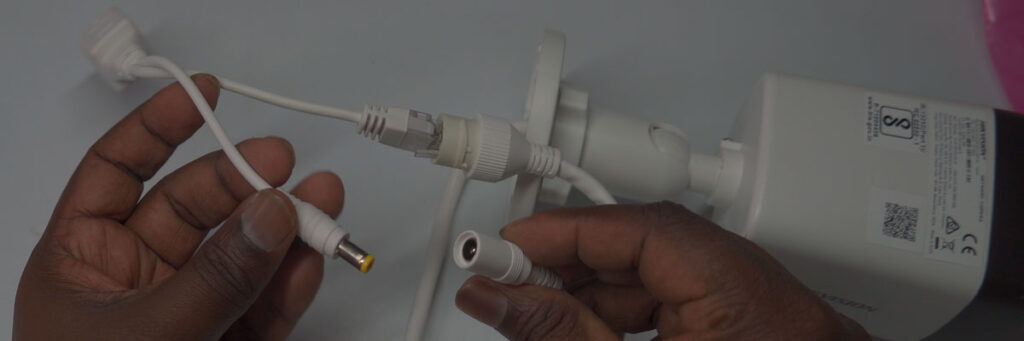

    1. Connect the POE Splitter Cable:
      • Attach the male DC pin to your camera’s DC power input.
      • Connect the LAN connector to your Ethernet cable or network port.
    2. Power and Data Over Ethernet:
      • This setup transfers both power and data through the same Ethernet cable, ensuring a streamlined connection.

    Step 3: Cable Length Considerations

    • Use Cat5 or Cat6 Ethernet cables.
    • Ensure the cable length does not exceed 30 meters to avoid power loss or signal degradation.

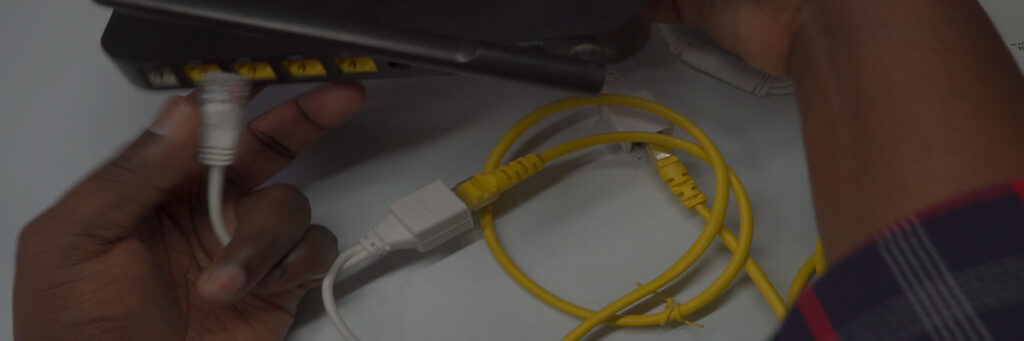

    Step 4: Connecting the POE Injector

    1. On the other end of the Ethernet cable:
      • Plug the LAN socket of the POE Injector into the Ethernet cable.
      • Connect the female DC pin to a DC 12V 2A power adapter for stable power flow.
    2. Connect the LAN cable to your modem, router, or PC’s LAN port to establish a network connection and access the camera.

    Step 5: Powering Up

    • Plug the DC power adapter into an outlet to power up the camera.
    • Access the camera on your LAN network.

    Step 6: Camera Configuration

    • Once powered, begin the initial setup process using your camera’s software or web interface. Configure settings like IP address, resolution, and storage options as needed.

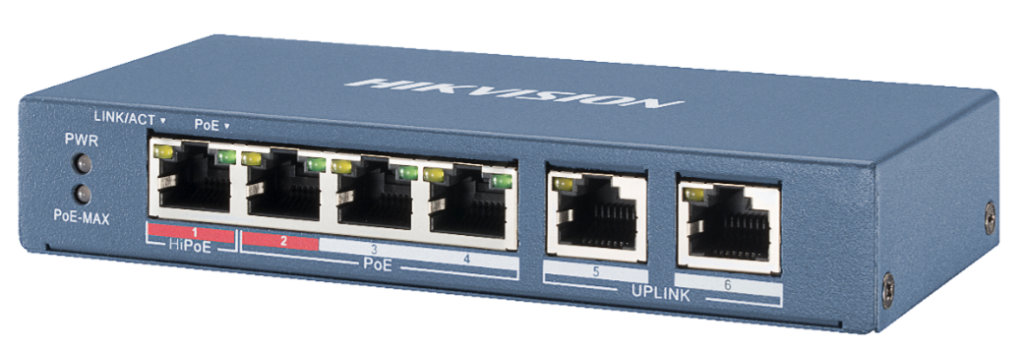

    Method 2: Using a POE Switch

    This method is suitable for setups requiring more cameras or longer cable runs. A POE switch powers the camera and transmits data over Ethernet for distances up to 200–250 meters, depending on the switch model.

    Buy Online : Poe Switch

    Step 1: Connect the Camera

    1. Plug one end of the Ethernet cable into the camera’s LAN port.
    2. Connect the other end to the POE switch.

    Step 2: Power and Data Over Ethernet

    • The POE switch provides power to the camera directly through the Ethernet cable, eliminating the need for a separate DC connection.

    Step 3: Expanding the Setup

    • This method supports multiple cameras. Connect each camera to the POE switch using Ethernet cables.

    Step 4: Network Access

    • Connect the POE switch to your modem, router, or network hub.
    • Access the cameras over your LAN network.

    Important Notes

    • These methods showcase examples of connecting an IP camera to a CCTV recorder or PC.
    • For setups involving more advanced configurations, refer to additional videos or tutorials on our channel.

    Advantages of Each Method

    1. Passive POE Injector Splitter Kit:
      • Ideal for short-range setups with one or two cameras.
      • Cost-effective for small-scale installations.
    2. POE Switch:
      • Scalable solution for larger networks.
      • Supports multiple cameras and longer cable distances.

    Final Thoughts

    Both methods are straightforward and reliable for connecting IP cameras. Choose the one that best suits your setup requirements.

    In our upcoming tutorials, we’ll explore more advanced ways to integrate IP cameras with CCTV systems and smart home automation. Stay tuned for in-depth demonstrations and features of these devices.
