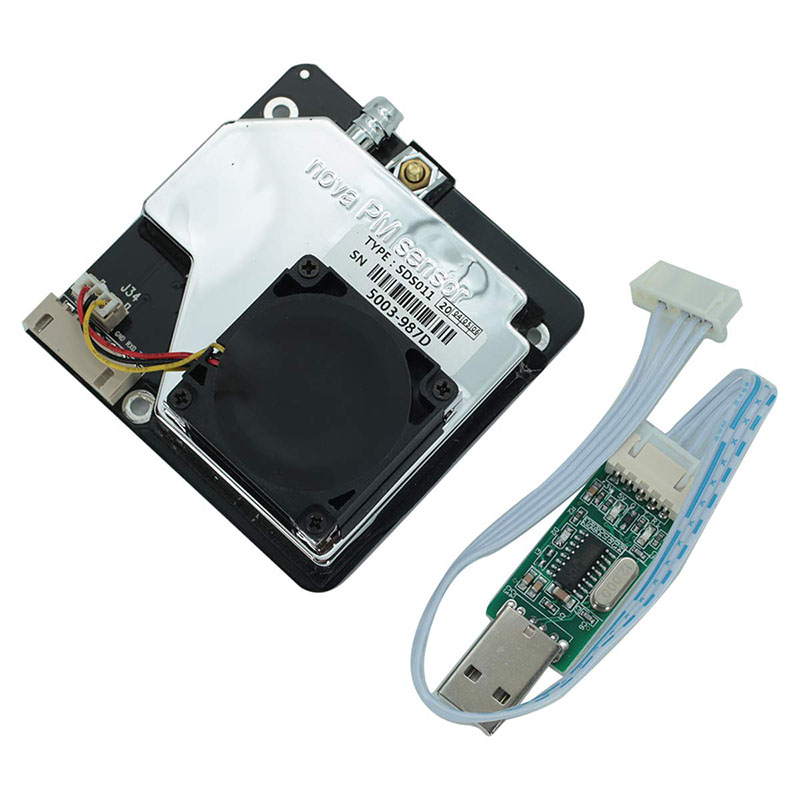

Nova PM Sensor SDS011 pm2.5 Air Quality Detection Sensor

Nova PM Sensor SDS011 pm2.5 Air Quality Detection Sensor

This is the specification for the SDS011. One should not consider all those values for granted as there is quite often a big difference between what is said to be possible and what is actually possible (and this is why we are setting up all our experiments). Output: PM2.5, PM10 Measuring Range: 0.0-999.9μg/m3 Input Voltage:5V […]

Category: ,

Description

This is the specification for the SDS011. One should not consider all those values for granted as there is quite often a big difference between what is said to be possible and what is actually possible (and this is why we are setting up all our experiments).

  • Output: PM2.5, PM10
  • Measuring Range: 0.0-999.9μg/m3
  • Input Voltage:5V
  • Maximum Current: 100mA
  • Sleep Current: 2mA
  • Response Time 1 second
  • Serial Data Output Frequency: 1 time/second
  • Particle Diameter Resolution: ≤0.3μm
  • Relative Error:10%
  • Temperature Range:-20~50°C
  • Physical Size: 71mm*70mm*23mm

Note that the SDS011 humidity working range is 0-70%. This is so good, since above 70% humidity, the readings become unrealiable.
