Microwave human Body Motion Detector Load-Light wiring connection Diagram

This is latest technology human body deteted motion sensor is very helpful to save the energy (power)

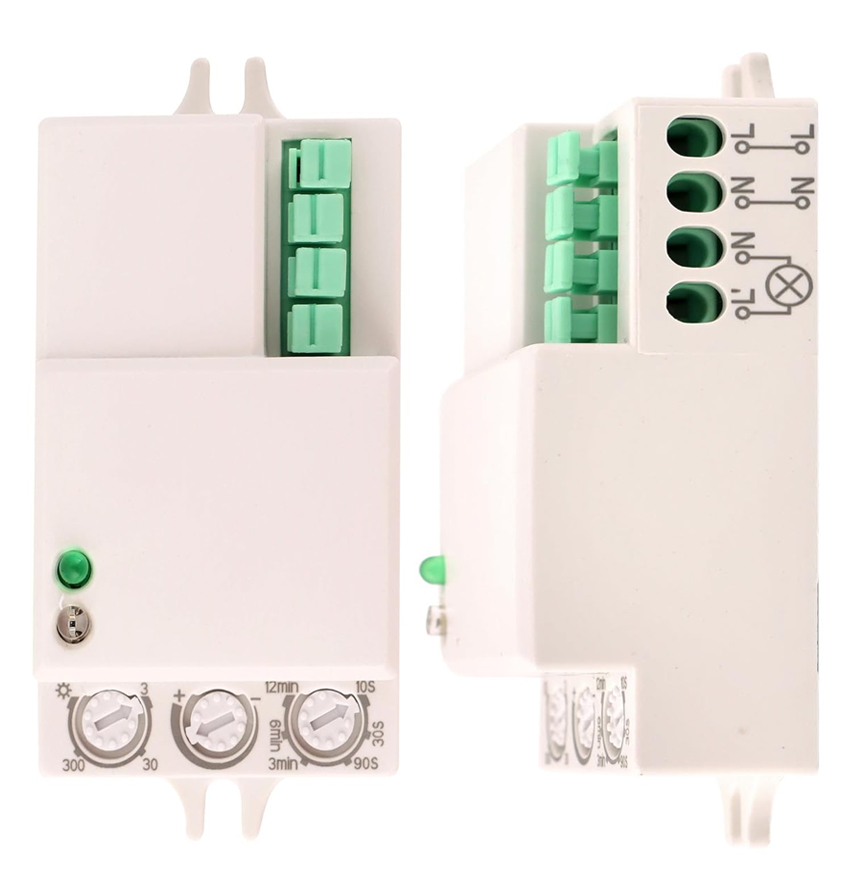

This sensor switch uses Microwave 5.8 Ghz cw ) technology to sense the presence of any person in a room and accordingly control the light. This is a better technology than the PIR sensor as it can falter in hotter weather. You can adjust the sensing distance of the person. The sensor also has a function in which it can permanently switch off the light over a certain ambient lux level. The Time delay after which the light is again switched off after being Switched on with the triger of a person’s presence.

Material:PC(UV proof)

Detection Range: wall 180∞/ ceiling 360∞

Power Source: 220-240V/AC

Rated Load Max. 1200W(incandescent lamp)
300W(energy-saving lamp)

Detection Distance: wall:2-15m(adjustable)
25.0

ceiling:1-8m(radius), adjustable

Time Delay: 10sec+3sec to 12min+1min(adjustable)
Ambient Light : <3-2000LUX(adjustable)
Installation Height:wall: 1.5-3.5m celling:2-8m
Power Consumption:approx.0.9W

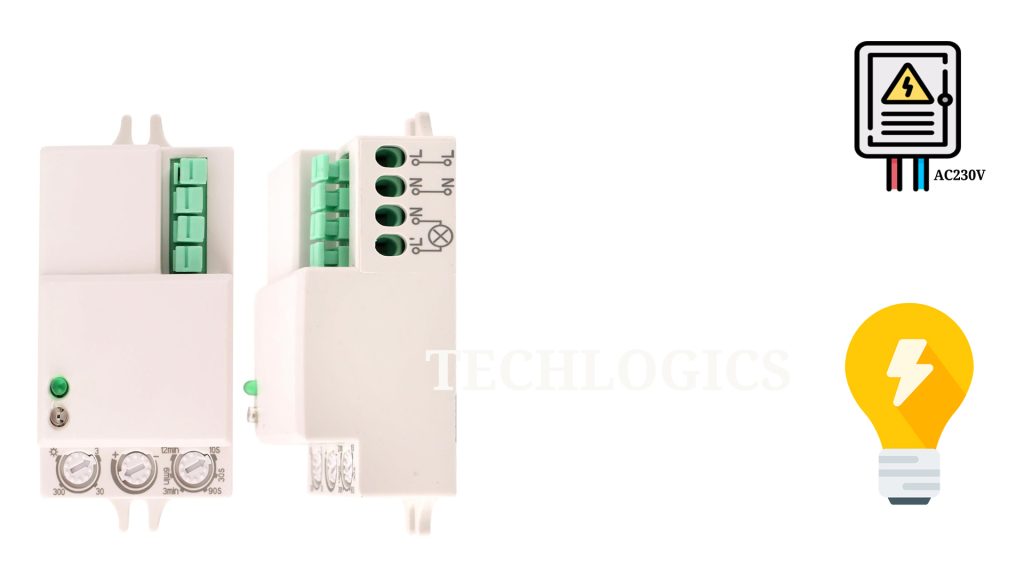

MICROWAVE HUMAN BODY SENSOR WIRING / CONNECTION WITH LIGHT/LOAD

This page we have shown how to connect the Ac230V Light to the sensor

Sensor Buy Online : https://amzn.to/4aM3vSQ

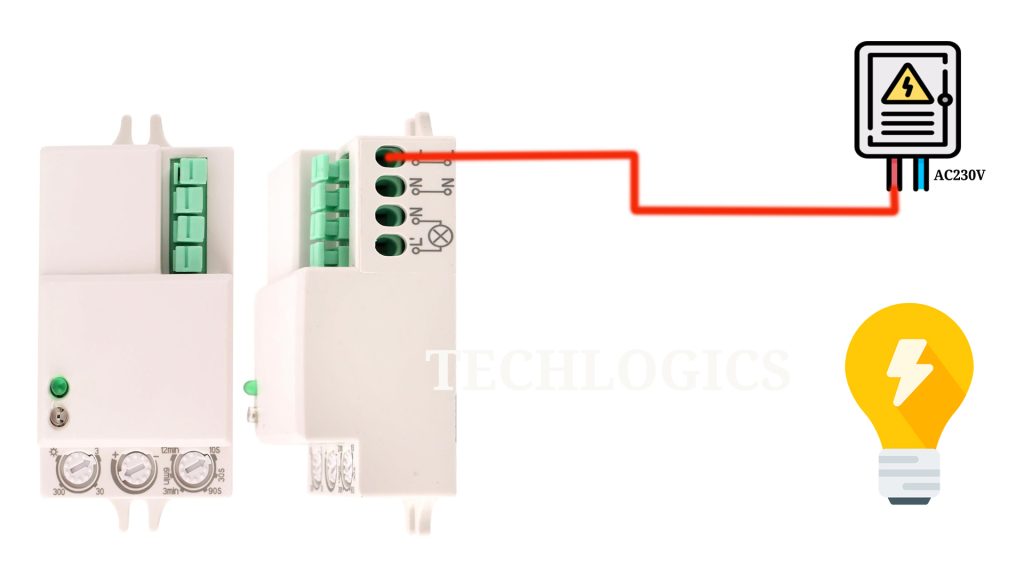

AC input Line/Phase wire to Sensor Input “L” Terminal

AC input Neutral wire to Sensor Input “N” Terminal

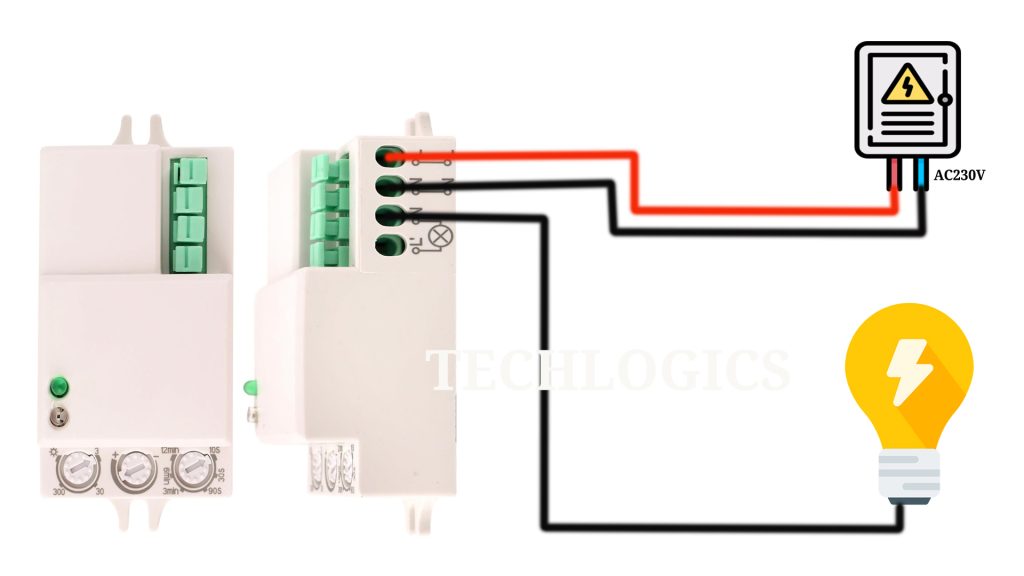

Load/Light Neutral wire to Sensor output “N” Terminal

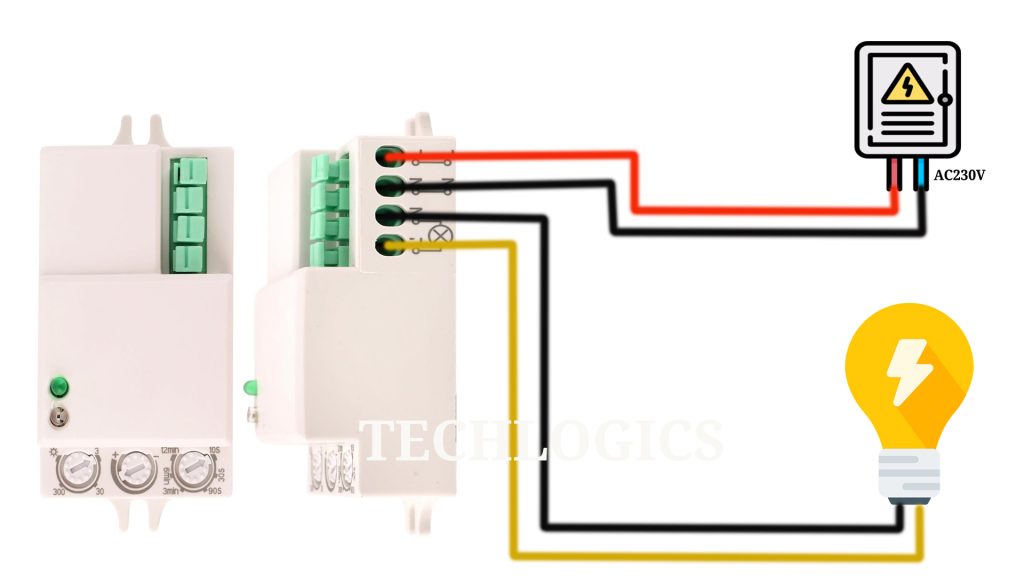

Load/Light Line/Phase wire to Sensor Load output “L” Terminal

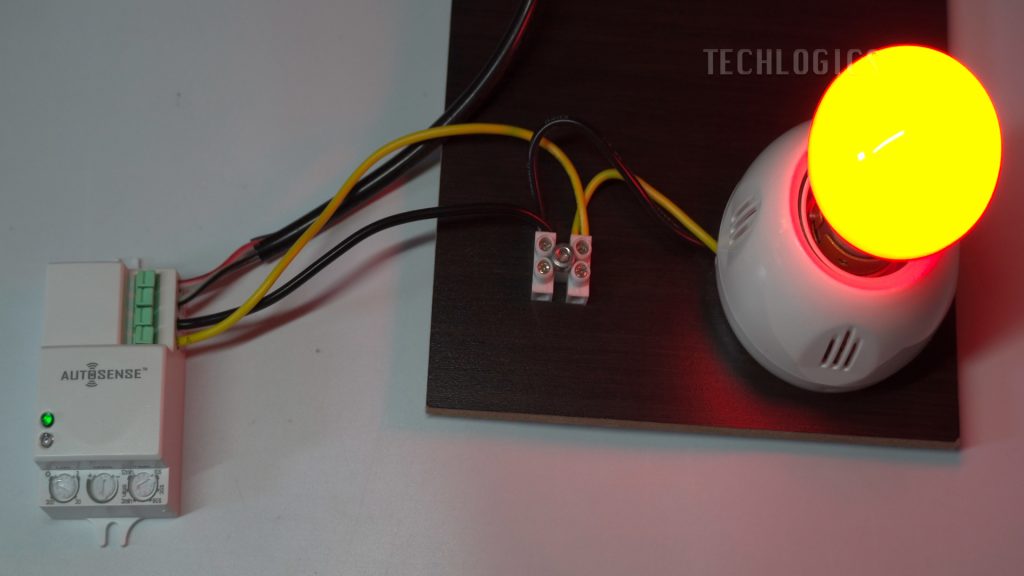

To test (Turn On the power) :

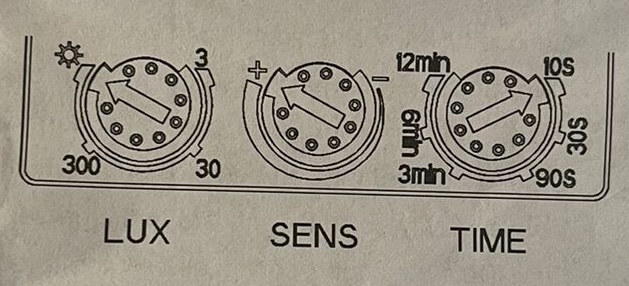

Turn the LUX knob clockwise on the maximum (sun), turn the SENS knob clockwise
on the maximum(+). Turn the TIME knob anti-clockwise on the minimum (10sec).

When turn on the power, The light will be “ON” at once. And 10sec_-sec later
the light will be off automatically. Then the sensor detect induction signal again, it can work normally.

Note : When testing in daylight, The LUX (SUN) knob keep in higher
Otherwise the light will not glow when testing at daylight (sun light)
