How to Set Up Your Hikvision 4G PT Network Camera: A Step-by-Step Guide

In this blog post, we’ll walk you through the initial setup process for the Hikvision 4G PT Network Camera. From installing the memory card and SIM to configuring the Hikconnect mobile app and setting up recording options, we’ve got you covered. Whether you’re a beginner or a seasoned user, this guide will help you get your camera up and running smoothly.

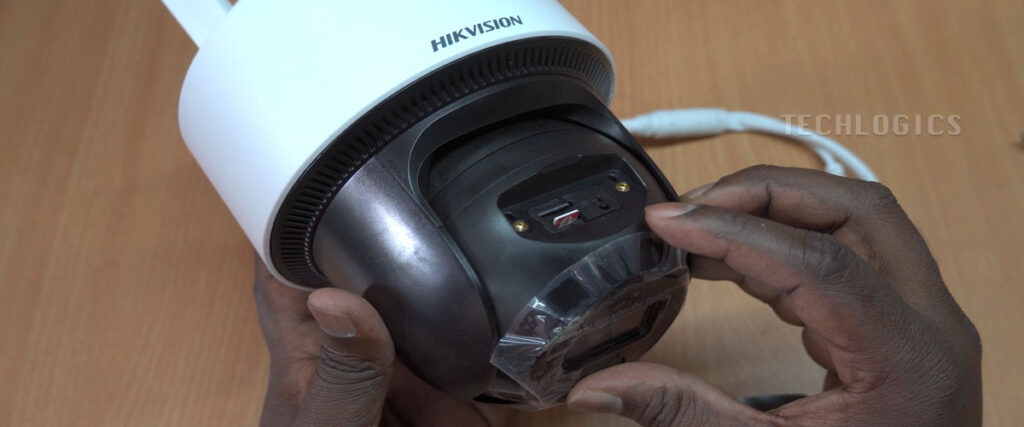

Memory Card & SIM Installation

Before diving into the setup, ensure the camera is powered off to protect both the device and the cards. The SIM and microSD card slot is located on top of the camera. To access it, gently tilt the camera lens downward. Insert the memory card and SIM card into their respective slots, ensuring they’re securely fitted. For a visual guide, refer to the accompanying video demonstration.

Power Up the Camera

To get started, connect the camera to a power source using the provided DC power adapter. Once powered on, the camera will begin its startup sequence. You’ll notice the PT (pan-tilt) lens rotate once, signaling that the camera is booting up. A red light will appear initially, followed by a flashing blue light once the boot process is complete. This blue light indicates the camera is ready for configuration. You’ll also hear a voice announcement prompting you to connect to your Wi-Fi network—don’t worry, we’ll cover the 4G setup shortly!

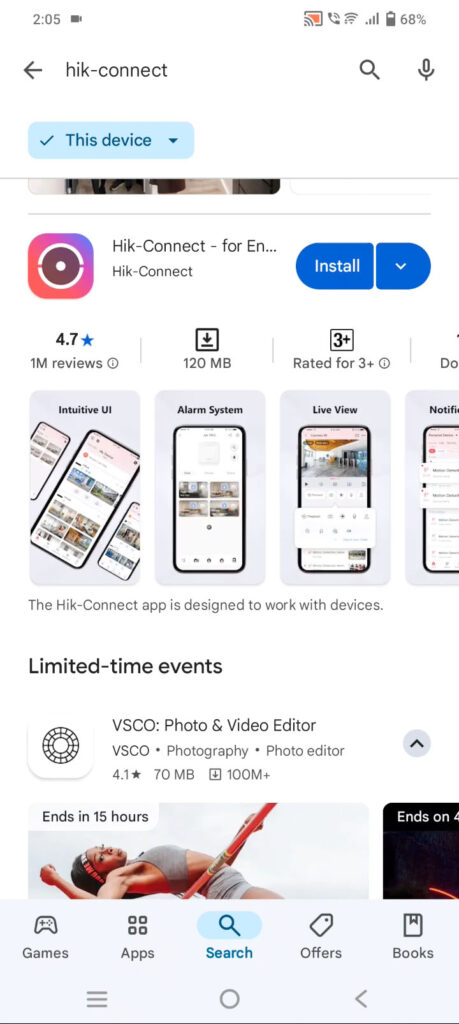

Download and Install the Hikconnect App

The Hikconnect app is your gateway to managing the camera. Here’s how to get it set up:

1. Find the App: Open the Play Store (or App Store for iOS users) on your smartphone or tablet. Type “Hikconnect” into the search bar and locate the app developed by Hikvision.
2. Install: Tap the app, hit “Install,” and accept any permissions if prompted. The download and installation should take just a few minutes.
3. Launch: Once installed, tap “Open” or find the app icon on your home screen or app drawer.

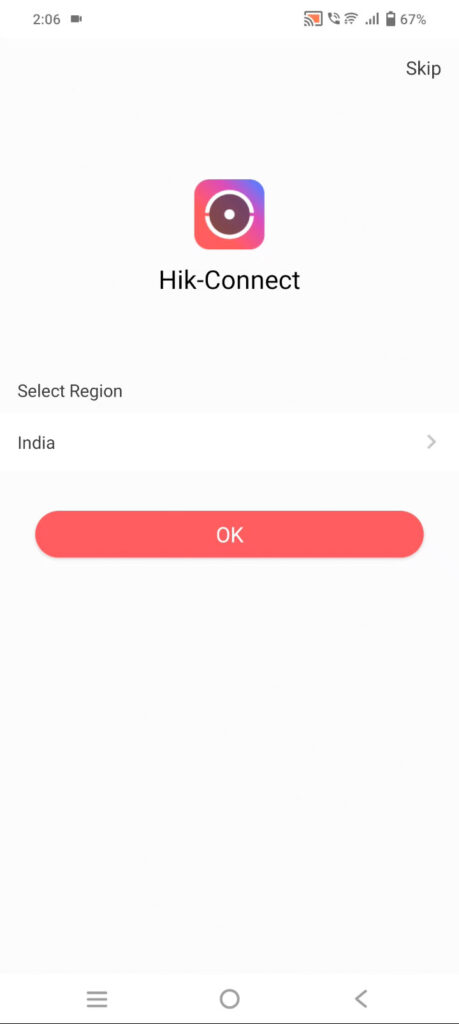

4. Set Your Region: On first launch, select your country to optimize connectivity with local servers.

Logging In or Registering

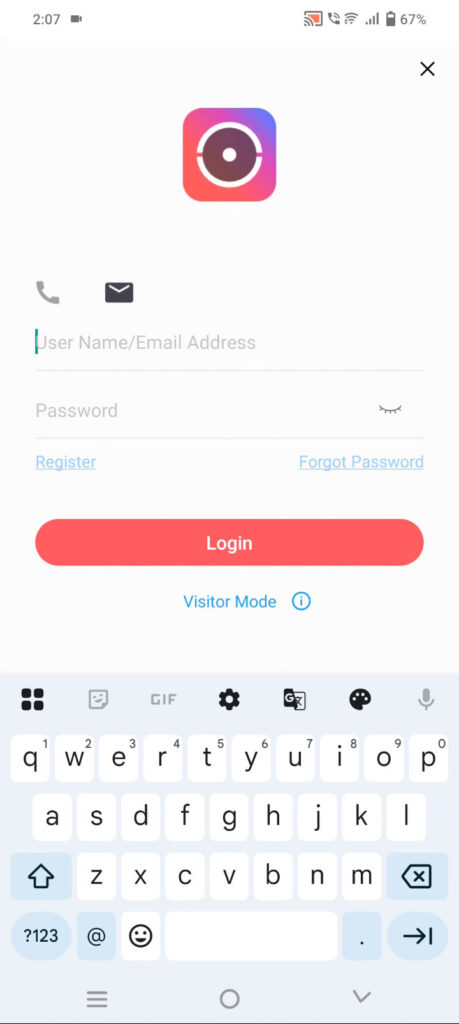

• Existing Users: Log in with your phone number or email and password.

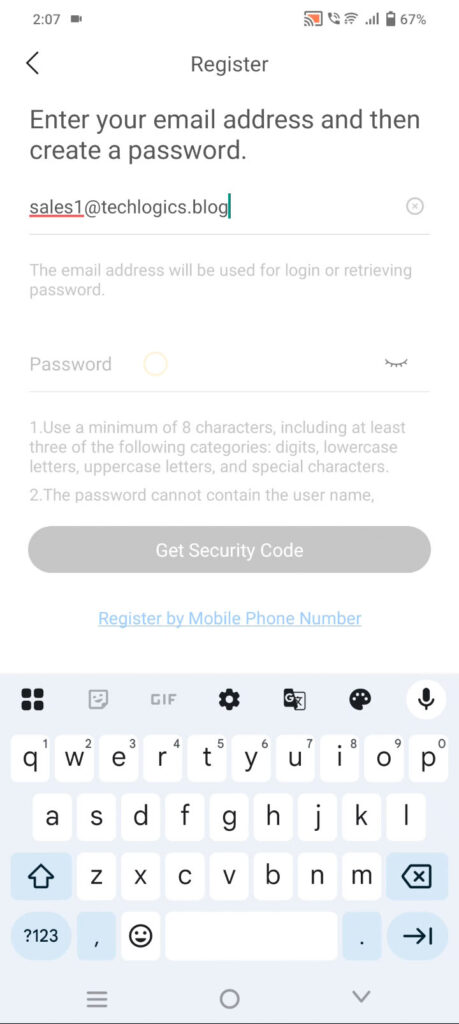

• New Users: Tap “Register” on the login screen. Choose to sign up with your email or phone number:
  • Enter your email or number and create a strong password (mix of letters, numbers, and special characters).
  • Complete the captcha verification (e.g., selecting images).

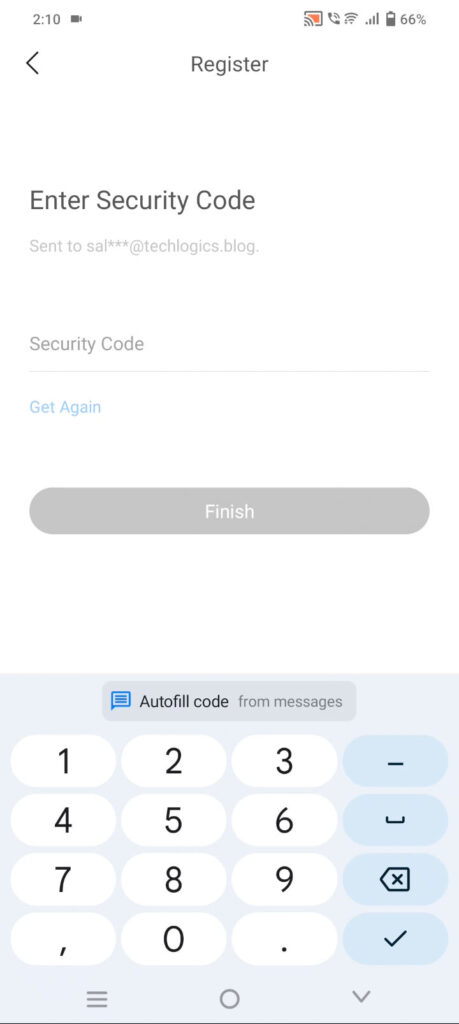

  • Check your email for a verification code, then enter it in the app to confirm your account.
  • Optionally, link your phone number for easier logins later.

For added security, enable biometric authentication (like fingerprint scanning) or face recognition if your device supports it. Once logged in, you’re ready to connect your camera.

Configuring the Camera with Hikconnect

Keep the camera near your phone during setup for a smooth connection process. Ensure it’s in network connection mode—if not, press the reset button to activate it.

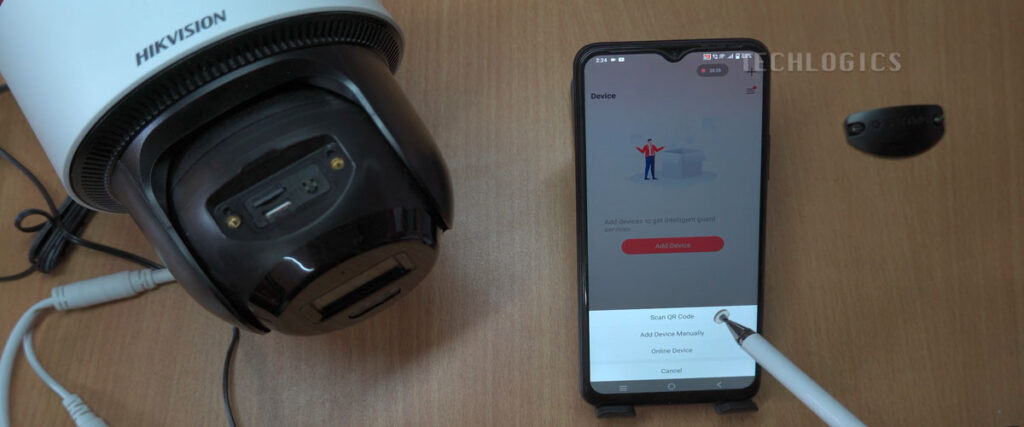

1. Add the Camera:
   • Open the Hikconnect app and tap “Add Device” or the “+” symbol.
   • Select “Scan QR Code.” Grant camera access when prompted.

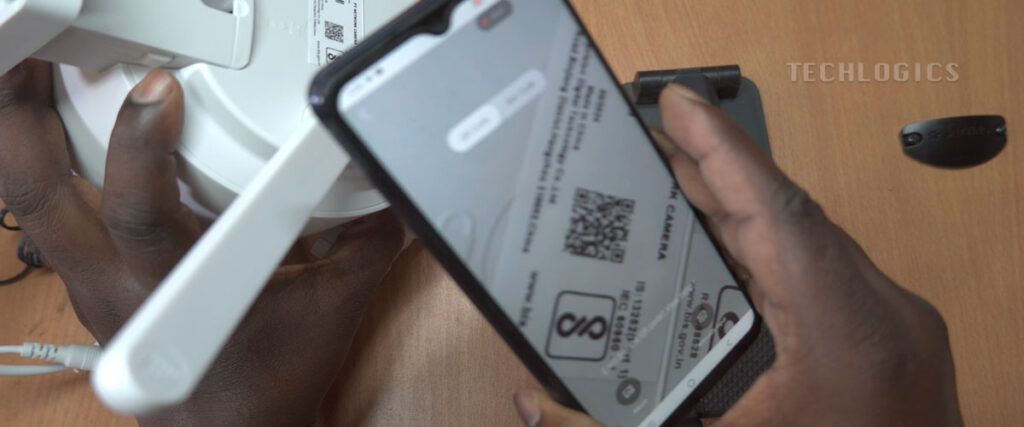

   • Locate the QR code on the camera (usually on a sticker) and scan it with your phone. This code contains key configuration details.
2. Connect to 4G:
   • Follow the app’s prompts to link the camera to a 4G network. Once connected, you’ll hear a voice prompt confirming the setup is complete.

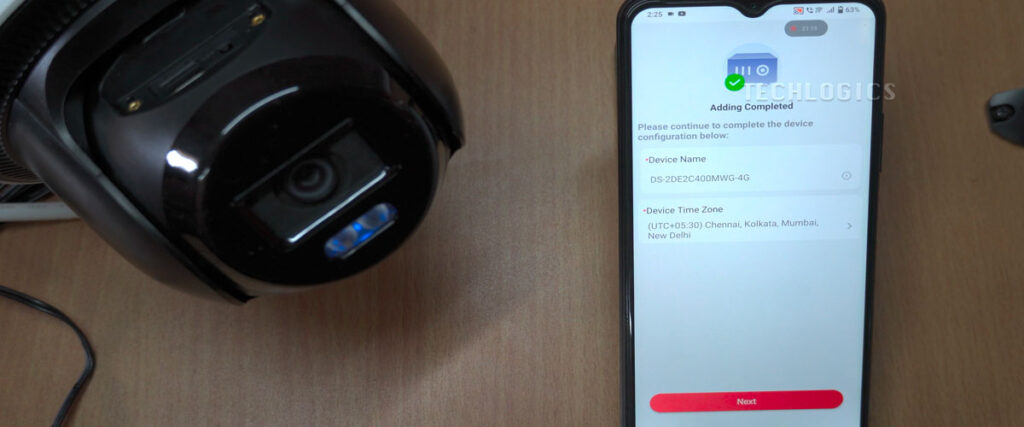

3. Customize Settings:
   • Enable audio recording if needed (it’s disabled by default).
   • Set the date, time, and format.
   • Name your device and specify its location.

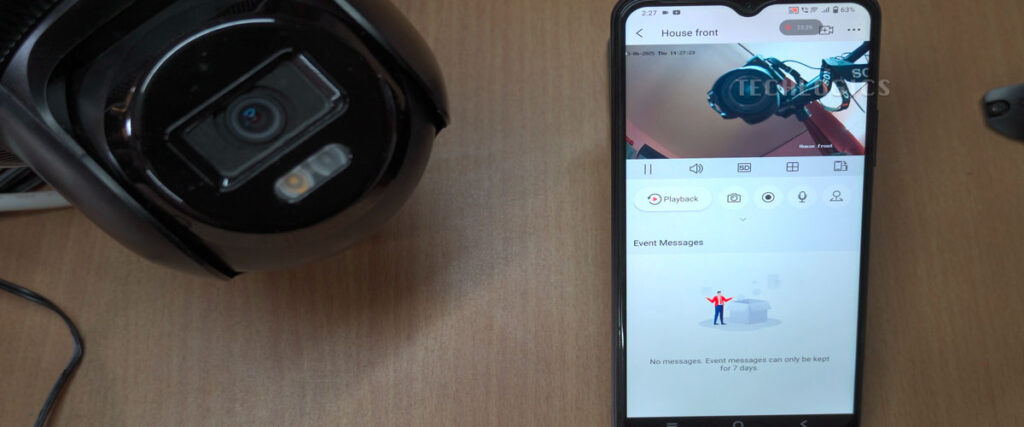

After these steps, you can access live streaming for real-time monitoring.

Secure Your Feed

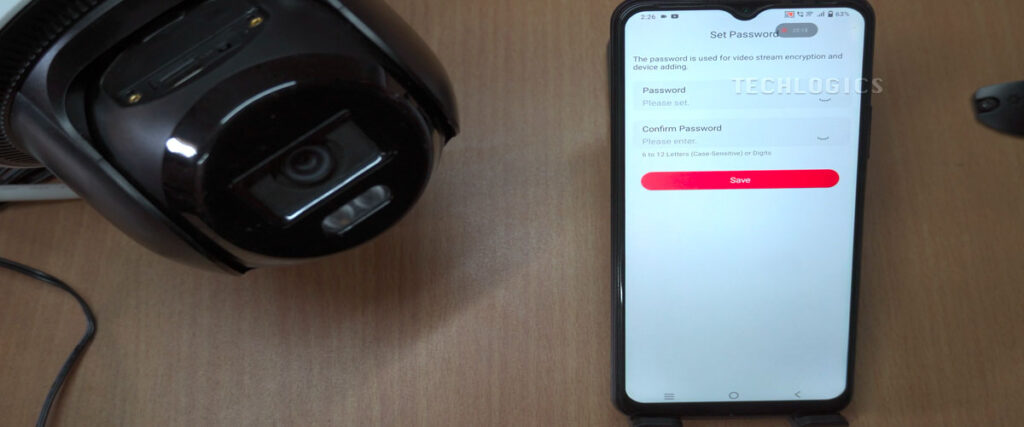

Change the default verification code for the live feed to enhance security, especially if sharing access. Pick a unique, memorable code, note it down, and save the settings in the app.

Installing the Camera

With the 4G connection established and the camera added to Hikconnect, mount it in your desired location. Once installed, you’ll unlock features like:

• Live Streaming: View real-time footage from anywhere.
• Playback: Review recorded footage.
• PTZ Control: Adjust the camera’s angle and zoom remotely.

Setting Up Recording

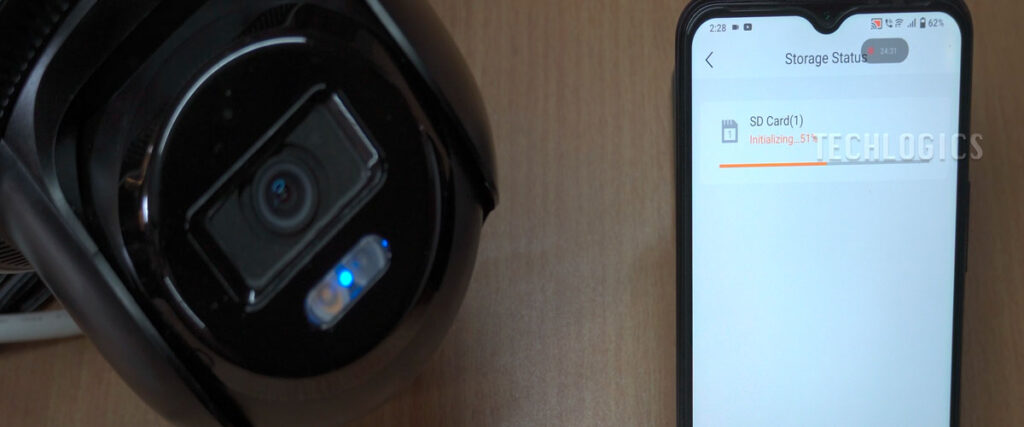

To configure the memory card:

1. Go to “Camera Settings” > “Record List” > “Storage Medium.”
2. If the card shows as “Uninitialized,” select it and click “Initialize” to format it.
3. Once initialized, the status will update to “In Use,” and storage capacity will display.

Switch to the SD card view for playback. By default, the camera records motion detection or event-based footage—adjust this mode in the settings to suit your preferences.

Why Hikconnect Shines

The app works seamlessly over mobile data or Wi-Fi, giving you worldwide access to your camera. Monitor your property from home, work, or while traveling. For deeper insights into settings like storage options, event alerts, and two-way audio, check out additional resources in our video series.

Final Thoughts

With your Hikvision 4G PT Network Camera set up, you’re ready to enjoy its powerful features. Stay tuned for more tips on optimizing storage, enabling alerts, and using two-way audio to enhance your experience.
