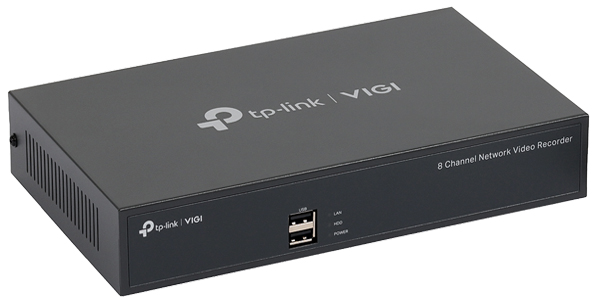

Welcome to our comprehensive guide on installing a hard disk drive (HDD) on your TP-Link Vigi NVR. Follow these steps to ensure a smooth and secure installation.
Step 1: Preparation
- Power Off and Unplug the NVR
- Before starting, ensure the NVR is powered off and unplugged from the power source to avoid any electrical mishaps.
Step 2: Choose a Compatible Hard Drive
- Hard Drive Specifications
- The NVR supports an SATA type hard drive with a capacity of up to 10TB. Choose a compatible HDD accordingly.

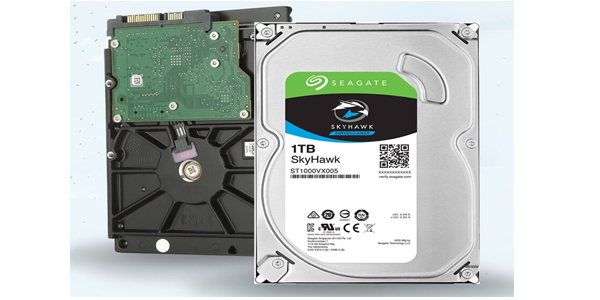

- For optimal performance, use a top-branded surveillance series hard disk drive such as Seagate, Western Digital, or Toshiba.
Step 3: Open the NVR Case
- Remove the Screws
- Use a star head screwdriver to remove the screws from the side and back panels of the NVR to open the case.
- Remove the Top Panel
- Gently push the top panel to remove it from the main body of the NVR.
Step 4: Install the Hard Drive
- Insert the Hard Drive

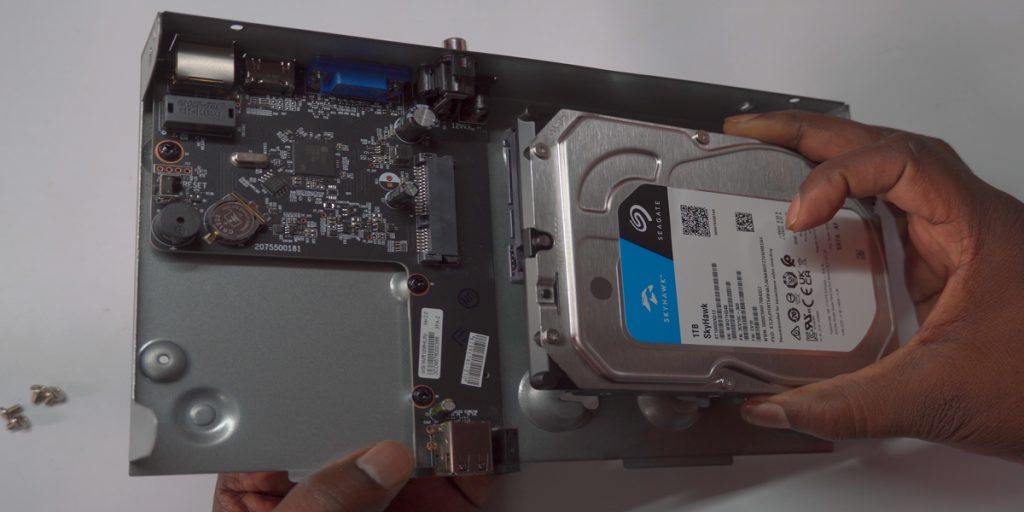

- Locate the hard disk slot on the motherboard. This slot is designed for easy installation, with no need for additional data or power cables. Simply insert the hard drive into its slot.

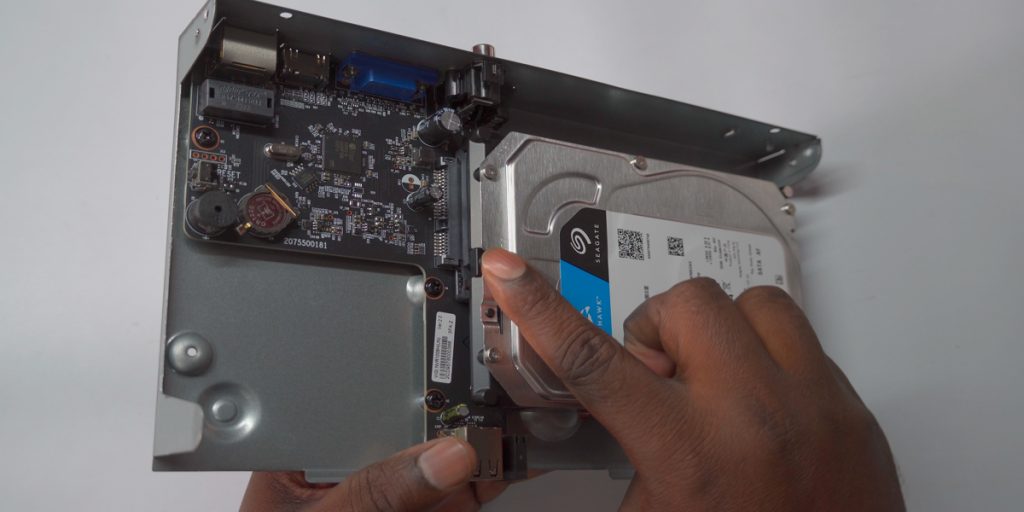

- Ensure the hard disk port and motherboard port interfaces are properly aligned and securely fixed.
- Secure the Hard Drive

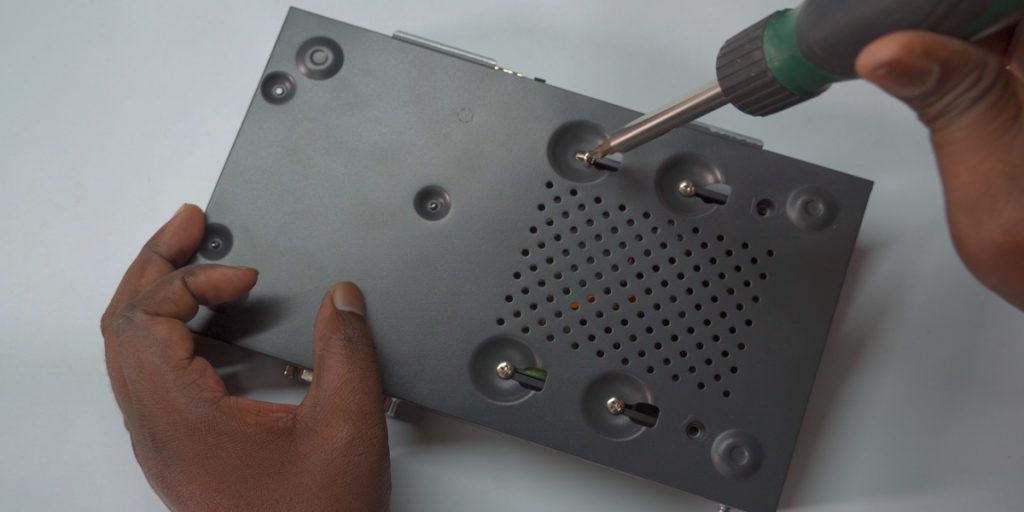

- Fasten the provided screws to secure the hard drive onto the NVR panel.
Step 5: Reassemble the NVR
- Reattach the Cover
- Reattach the top cover and secure it with the screws removed earlier. Ensure the cover is properly attached on all sides to the main panel.
Next Steps
In the next part of our guide, we will demonstrate how to activate or initialize the NVR when it is being used for the first time. Stay tuned!
By following these steps, you can easily install a hard disk drive on your TP-Link Vigi NVR and ensure your surveillance system is ready to go. If you have any questions or need further assistance, enter your queries below in the post comment section.
