In this blog post, we’ll guide you through the step-by-step process of connecting and configuring a P10 RGB LED display panel with the Huidu W04 controller. This comprehensive guide covers everything from initial setup to creating dynamic content and setting up an LED digital clock.
Required Components:
- Huidu W04 Display Controller
- P10 RGB Display Panel (32×16 pixels, 8S series)
- DC5V 10Amp Power Supply
- Power Cables (for SMPS to LED panel and controller)
- Flat Ribbon Cables (for data connection)
- Mobile Device (for installing the LED art app)

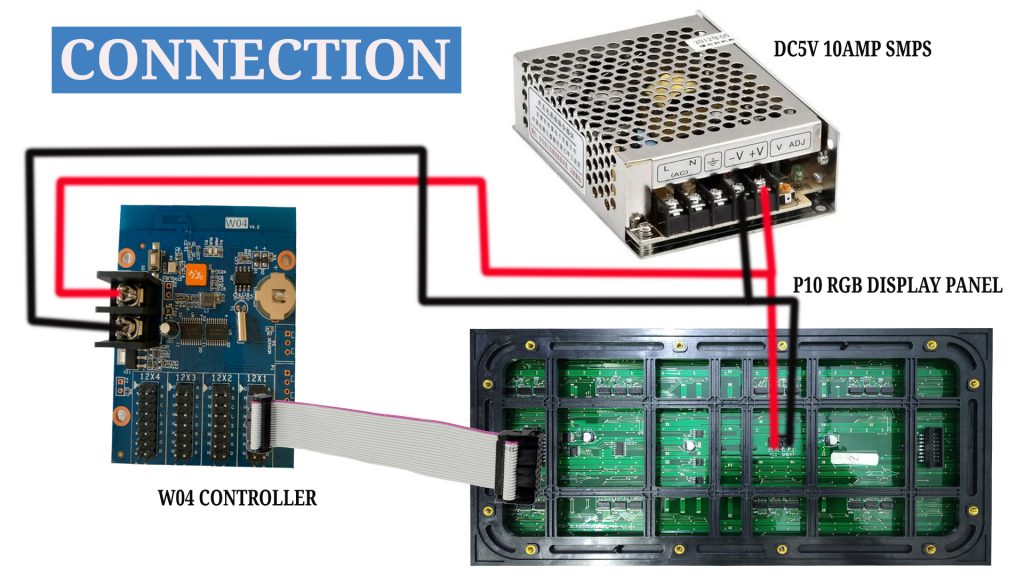

Initial Setup: Begin by connecting the power cable from the SMPS to the controller, ensuring correct polarity with positive and negative connections. For a single P10 panel, use a DC5V 10AMP SMPS; for multiple panels, adjust amperage accordingly.
Connect the data cable to the controller’s X1 Port. On the LED panel, connect the data cable to the “IN” port as indicated.
Power On and Configuration: Turn on the power. Initially, the display may not appear correctly. Use the LED art mobile app or PC software to select the correct display panel hardware with the controller and configure the panel pixel size.
Installing and Using LED Art App:

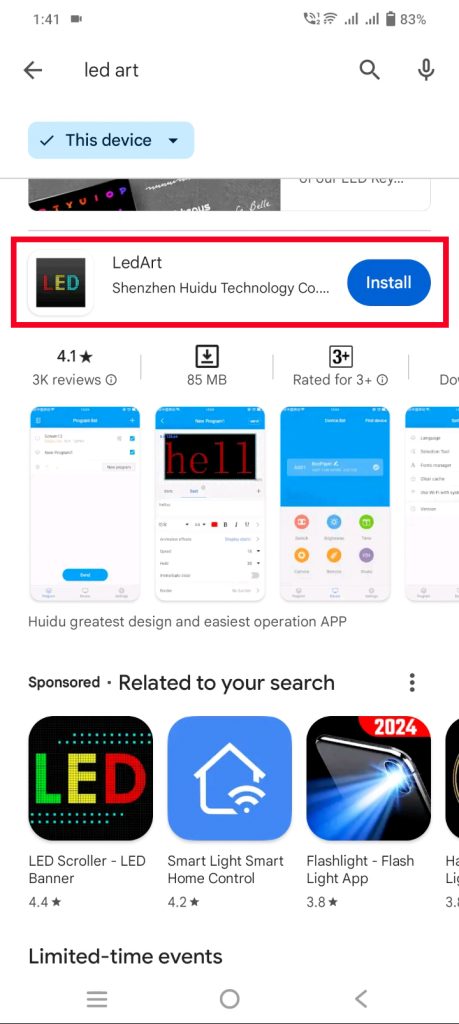

- Download and install “LED art” from the Play Store. This app allows configuration of panel settings (resolution, brightness), creation of dynamic content (text, images, animations, clocks), and remote control functionality.

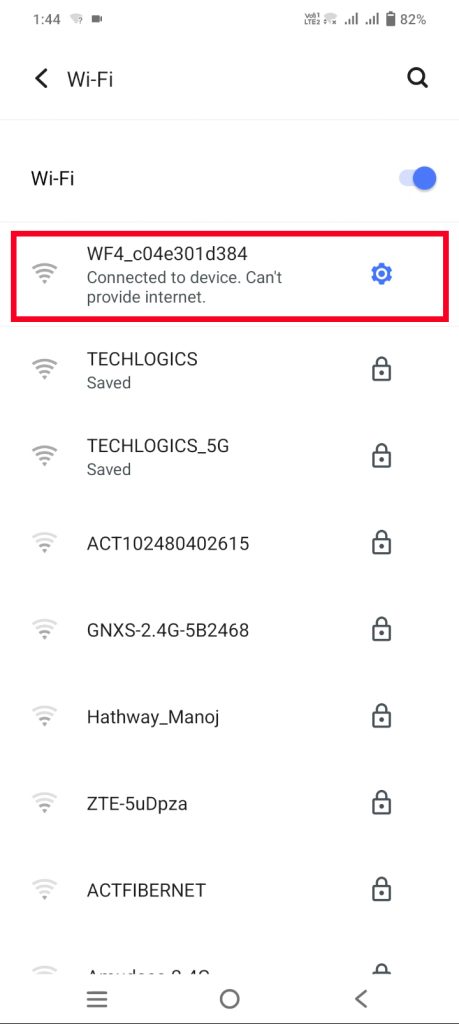

- Connect your mobile device to the controller’s WiFi network (SSID starts with ‘WFXX’). Enter the controller’s WiFi password (‘88888888’) and disable mobile data to ensure proper communication.

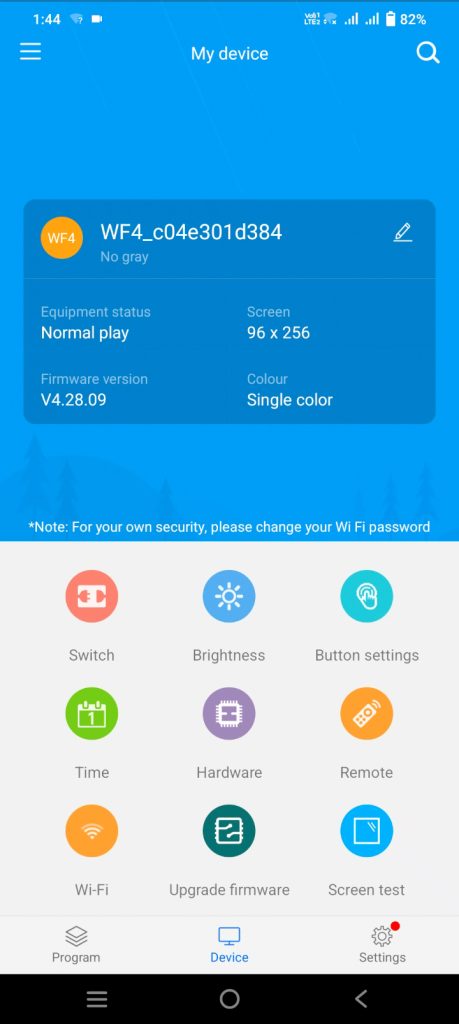

- Navigate to the ‘Device’ section in the LED art app and click ‘Find Device’ to establish a connection between the controller and your mobile device. Manage display settings and content directly through the app interface.
Creating a Text Display Program:

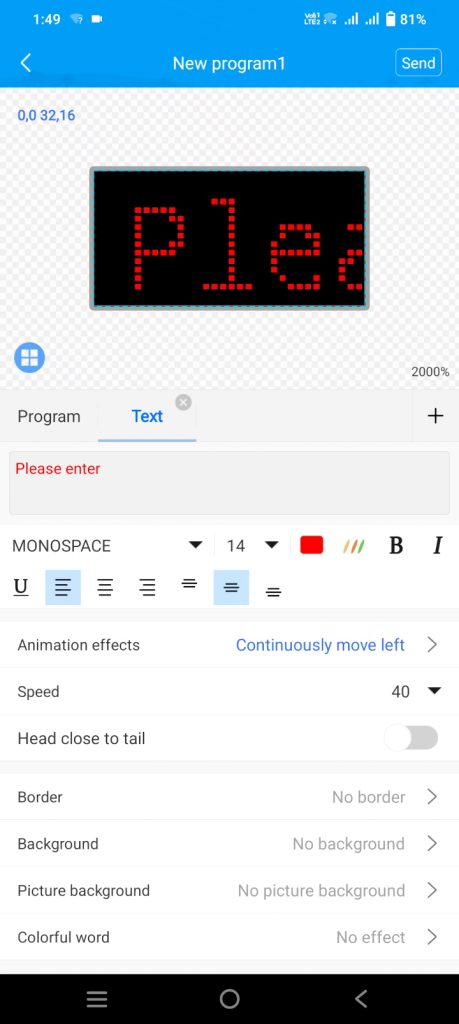

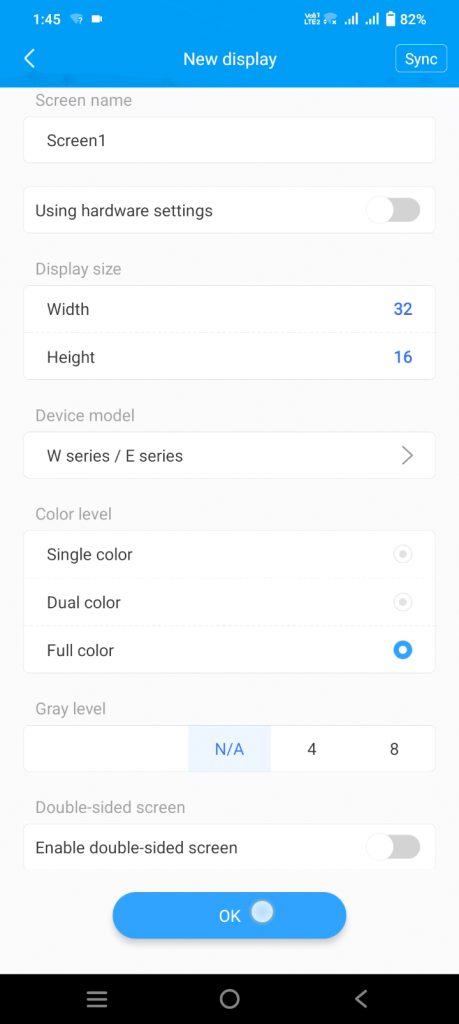

- Under ‘Program,’ create a new display program with a resolution of 32×16 pixels, full color.
- Set font size to 14, choose ‘continuously move left’ animation effect, and adjust speed (30-40) for desired animation on the LED display. Transmit this program to the controller.
Hardware Configuration:

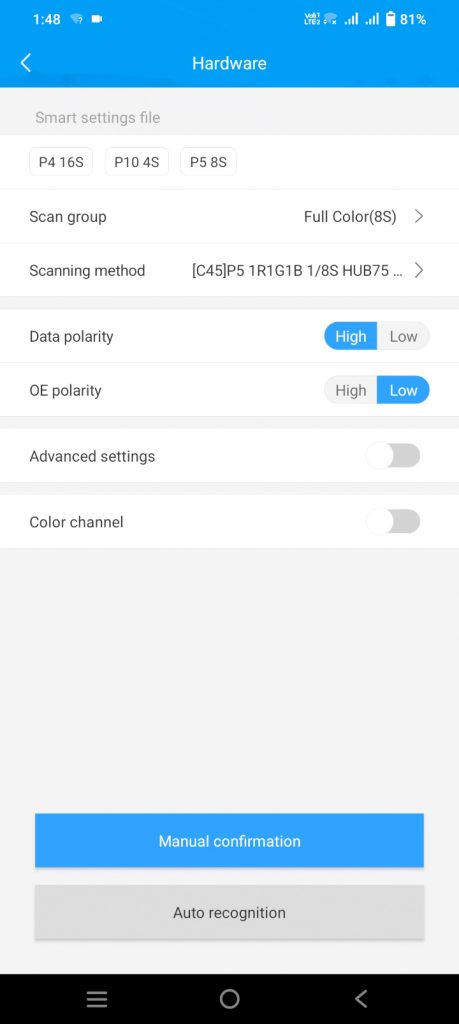

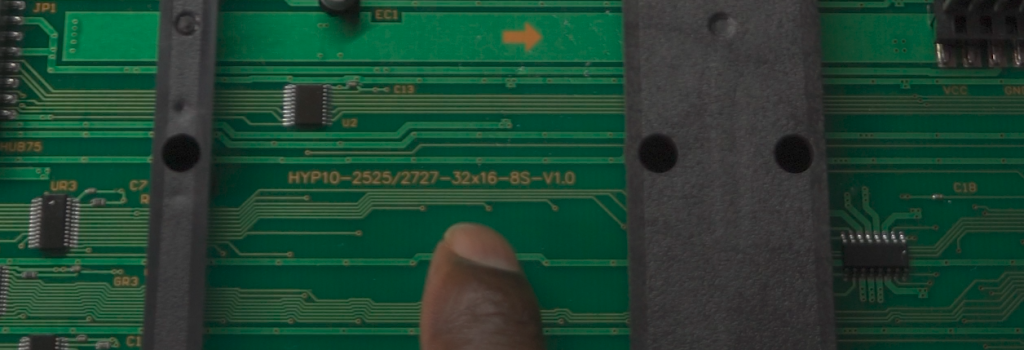

- In the LED art app’s ‘Hardware’ settings, authenticate with password ‘888’ and select the P10 display model (‘8S Full Color’) under ‘Scan Group’ based on your panel series (e.g., 8S RGB).
- Test screen colors using the ‘Screen Test’ option to ensure accurate display matching your program settings.

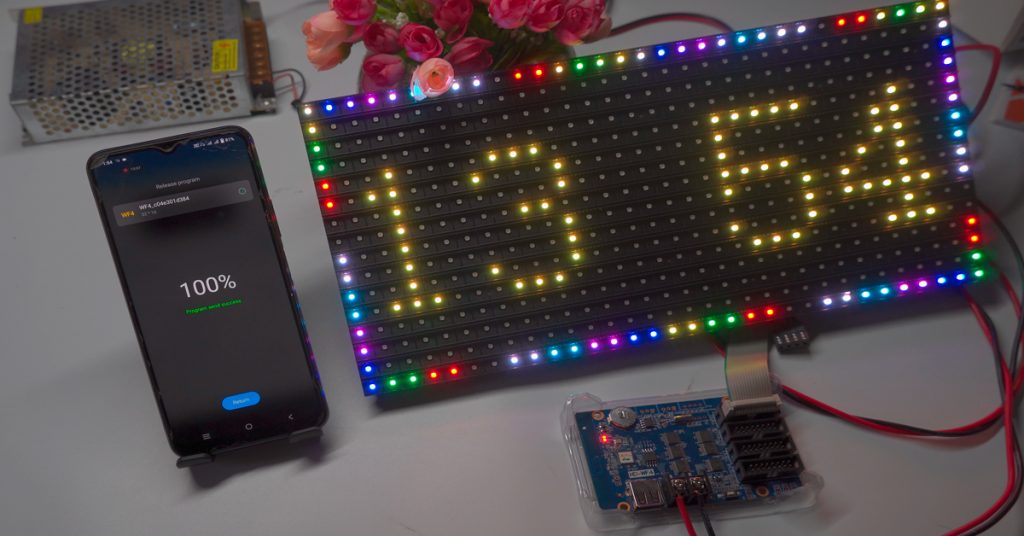

Setting Up a Digital Clock:

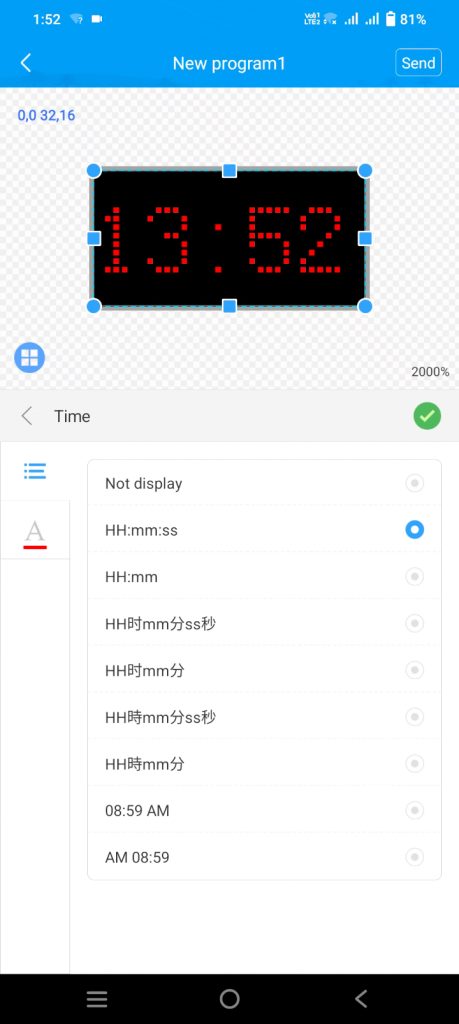

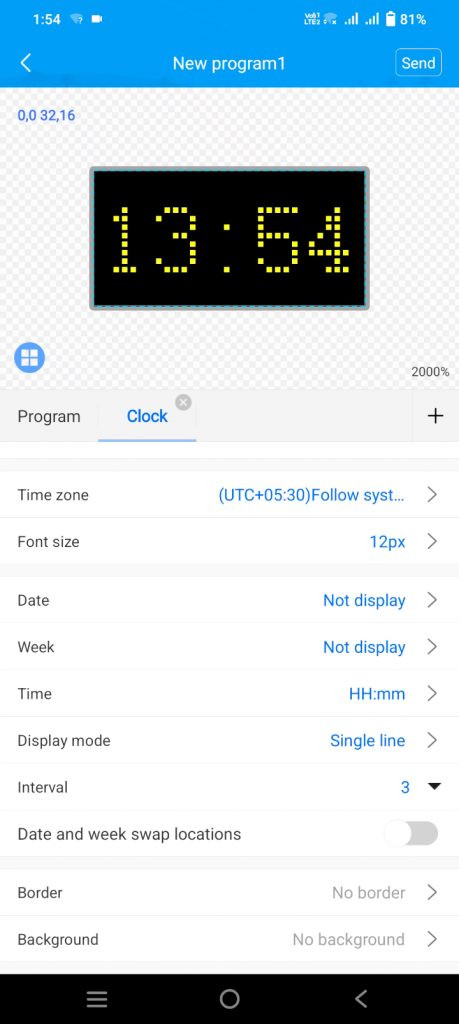

- Delete existing text content and select ‘Clock’ to configure a digital clock program on your panel.
- Choose either 24-hour or 12-hour format for the clock ‘time,’ hide date and week display, and set font size (12-14). Customize clock time color to your preference and send the program to the controller.

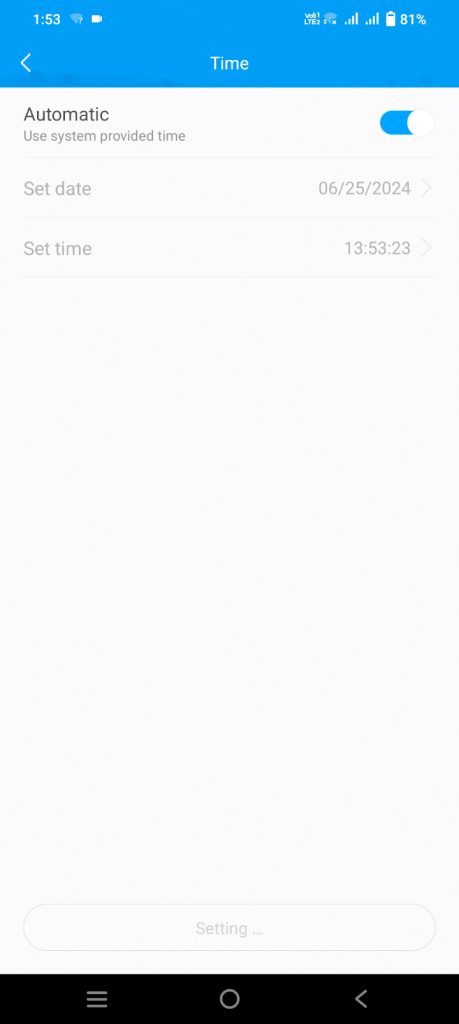

Time Synchronization: If the displayed time differs, synchronize the controller’s time with your mobile device under ‘Device’ and ‘Time’ settings. Disable and re-enable time synchronization to update controller time.
Final Touches and Use: Enclose the setup in an outer body with a front transparent acrylic sheet for protection and aesthetic appeal. Showcase your LED digital clock in various settings for clear and prominent time display.
Conclusion: By following these steps, you can effectively set up and configure a vibrant LED display using the P10 RGB panel and Huidu W04 controller. Whether for offices, homes, or public spaces, this setup offers customizable display options and accurate timekeeping. For more tutorials and updates, subscribe to our channel and support our content creation efforts.
