Hikvision Turbo HD Camera 4-signals switchable button : How to Use

Welcome to our comprehensive video tutorial on the Hikvision Hybrid analog camera, commonly known as the Turbo HD camera. In today’s session, we will walk you through the features and setup process of this versatile camera, specifically its unique 4-signals switchable button.

What Makes the Hikvision Turbo HD Camera Unique?

This camera stands out for its ability to easily switch between various video signal types: TVI, AHD, CVI, or CVBS. This flexibility is crucial as it allows you to ensure that your camera output matches your specific DVR technology, regardless of the brand you are using.

Locating the Signal Switch Button

The signal switch button is conveniently located alongside the camera’s video connectors. Utilizing this button allows you to easily change the video format to achieve optimal compatibility with your DVR.

Connecting to Your DVR

For today’s demonstration, we will be using a Hikvision DVR. However, the process remains applicable if you are connecting your camera to a different brand of DVR. If you find that the camera feed does not display on your monitor, don’t worry. You can easily switch the video signal to find a compatible output using the following steps:

  1. Ensure Proper Connections:

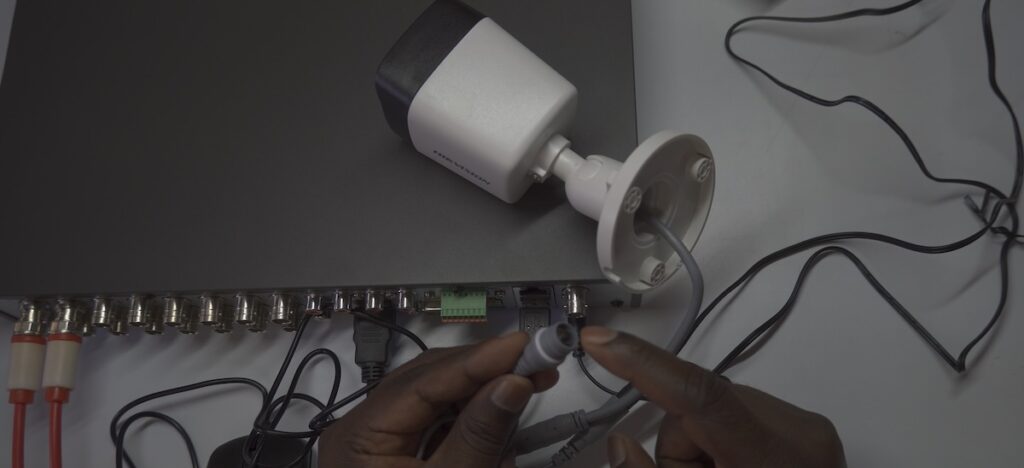

    • Connect the DC power and video cable from the camera to the DVR. This is crucial for the signal adjustment process.
  2. Initiating Signal Change:

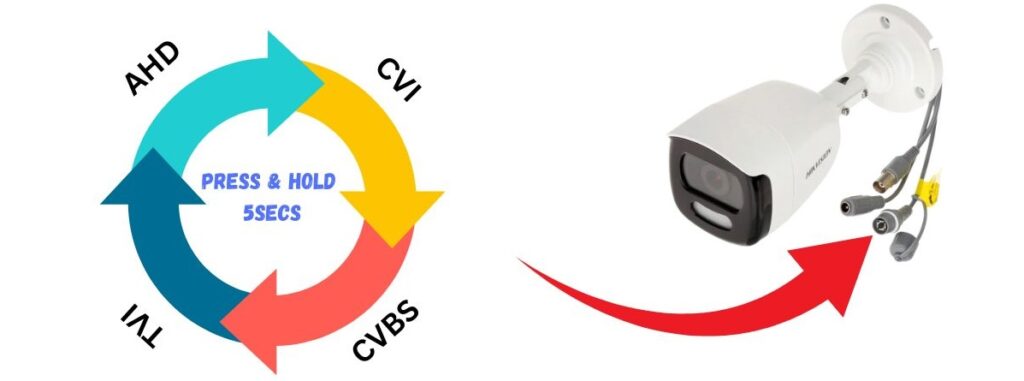

    • To change the video signal, press and hold the signal switch button for up to 5 seconds. This action enables the toggle between the different video formats.

Toggling Between Video Signals

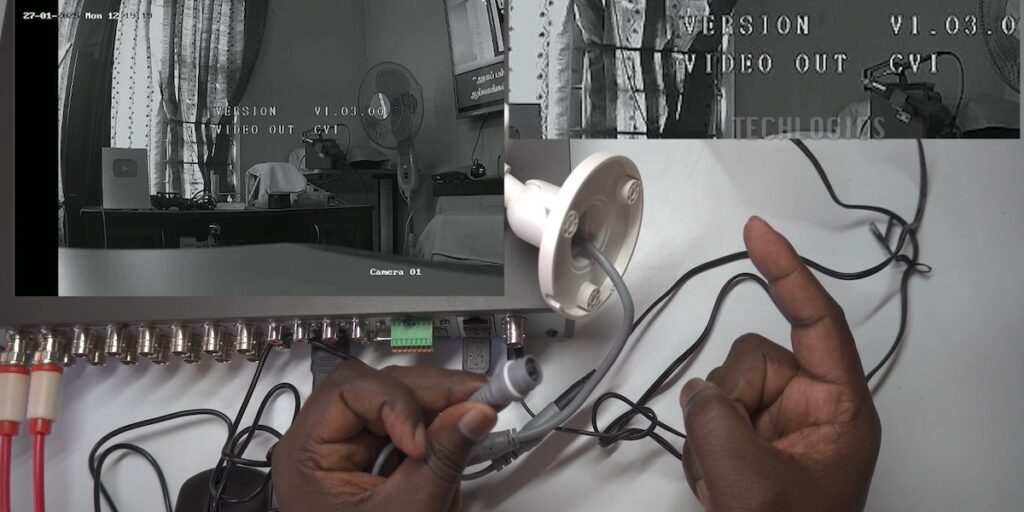

You can cycle through the video signals—TVI, AHD, CVI, and CVBS—by pressing and holding the switch for up to 5 seconds for each signal type. It is vital to choose the setting that corresponds with your specific DVR for optimal performance:

  • TVI and CVI Formats: If your camera is equipped with a built-in microphone, audio functionality will be available, providing an added layer of utility.
  • AHD Format: Offers high-definition video quality suitable for various applications.
  • CVBS Format: While this signal works with all DVRs, it’s important to note that the clarity will be below 720p, and audio features will not be available in this mode.

Saving Your Settings

Once you’ve found the right video feed, you’ll be pleased to know that this setting is saved as the primary configuration. This means that even if the camera is rebooted, the last selected video mode will remain in effect, ensuring a consistent surveillance experience.

Important Compatibility Notes

Keep in mind that this camera operates at 5MP and is compatible primarily with other 5MP DVRs from various brands. Understanding this will help ensure that you maximize the camera’s potential.

With the ability to adjust signals, you can easily ensure compatibility with popular DVR brands such as Dahua, Panasonic, D-Link, CPPLUS, and many more.

Conclusion

Now that you’re equipped with an understanding of how to effectively utilize the switch feature on the Hikvision Turbo HD camera, you can optimize your setup for better performance and compatibility.
